  • 240W LED Retrofit Kit
  • 240W LED Retrofit Kit
240W LED Retrofit Kit240W LED Retrofit Kit

240W LED Retrofit Kit

  • Item No.: RK-240W
  • Input Voltage: 100-277Vac ,100-347Vac , 200-480Vac
  • Lamp Base: E40/E39, E27/E26, Ex39
  • Dimension: 270*270*178mm 10.6*10.6*7inch
  • Product description: 240w retrofit kit can replace 700-750w MH, HPS
  • INQUIRY

240w retrofit kit feature

Features


• 130lm/w or 150lm/w

• Universal AC input 100-277Vac,100-347Vac,200-480Vac

• Protections: Short circuit / Over current / Over temperature.

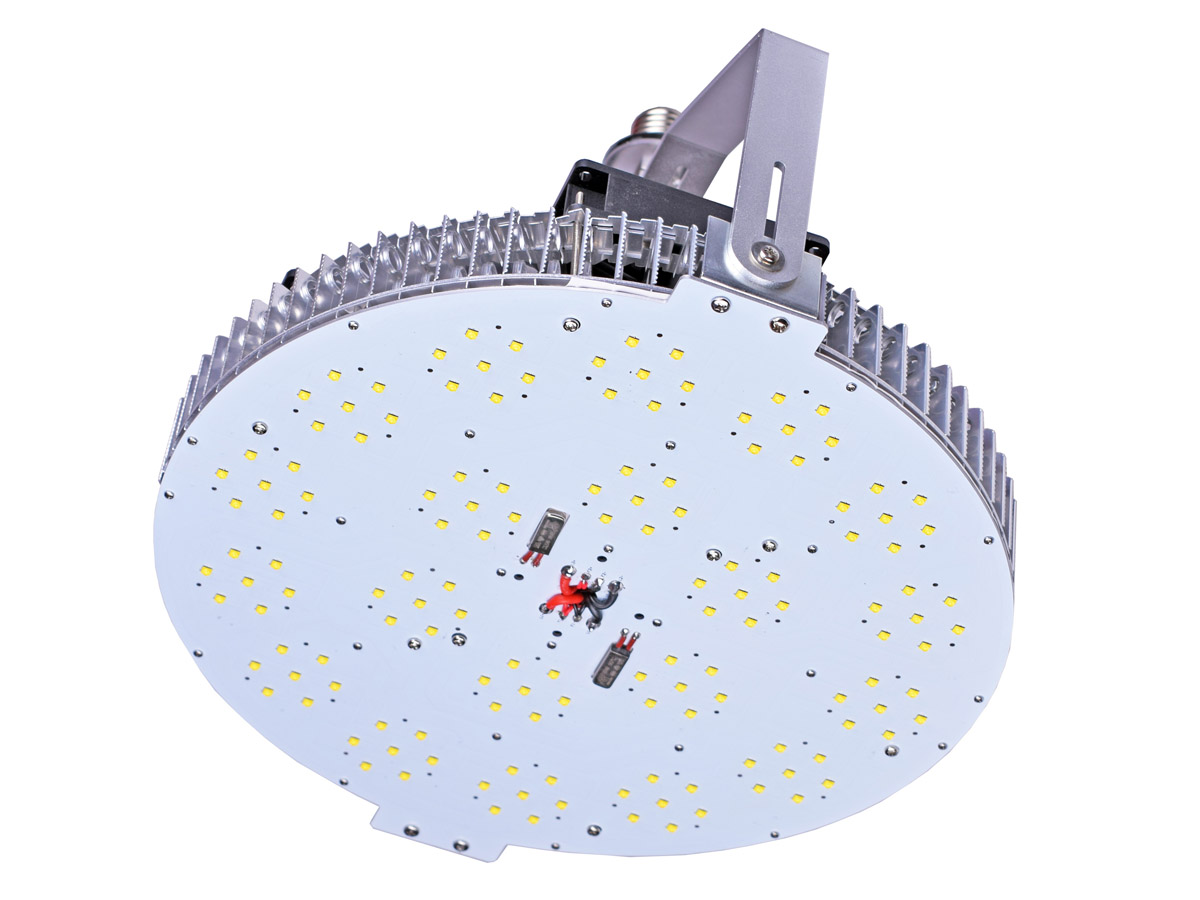

• Aluminum heat sink with fins.
• Meanwell driver and Osram led chip.
• 2.0 high thermal conducvity PCB.

Technical Specifications
Item No. RK-240W
Rated Power 240W
Input Voltage 100-277Vac,100-347Vac,200-480Vac
Power Factor PF>0.95
Lamp Base E40/E39, E27/E26, Ex39
LED Luminous Efficiency 130lm/w or 150lm/w
Luminous Flux(150lm/w) 36,000lm
Color Temperature Standard WarmWhite: 3000k, 4000k,
Natural White: 4500k, 5000k
Cool White: 5700k, 6500k
Color Rendering Index(CRI) Ra>83
LED Emitter Life 50,000hours
Replacement 700-750w MH, HPS
Working Environment Indoor/Outdoor Lighting
Operating Temperature -40~50℃
The Dimensions 270*270*178mm/10.6*10.6*7inch
Warranty 5 years factory warranty


Details

240w retrofit kit detail

Applications

240w e40 kit application

The relevant product parameters
Model NO.

RK-350W

RK-300W

RK-240W

RK-200W
Rated Power

350W

300W

240W

200W
Light Source/Count

CREE / Osram

CREE / Osram

CREE / Osram

CREE / Osram
LED Luminous Efficiency130lm/w or 150lm/w130lm/w or 150lm/w130lm/w or 150lm/w130lm/w or 150lm/w
Luminous Flux(150lm/w)52,500lm45,000lm36,000lm30,000lm
Replacement

1000W-1200W MH/HPS

900W-1000W MH/HPS

700-750w MH, HPS

600-700w MH, HPS
Input Voltage100-277Vac or 200-480Vac100-277Vac or 200-480Vac100-277Vac or 200-480Vac100-277Vac or 200-480Vac
Power Efficiency

>88%

>88%

>88%

>88%
Lamp BaseE40/E39, E27/E26, Ex39

E40/E39, E27/E26, Ex39

E40/E39, E27/E26,Ex39

E40/E39,E27/E26,Ex39
CRI

Ra>83

Ra>83

Ra>83

Ra>83
Dimensions

270*270*178mm
10.6*10.6*7inch

270*270*178mm
10.6*10.6*7inch

270*270*178mm
10.6*10.6*7inch

270*270*178mm
10.6*10.6*7inch
LED Emitter Life50,000hours50,000hours50,000hours50,000hours
Warranty

5 years factory warranty

5 years factory warranty

5 years factory warranty

5 years factory warranty

Model NO.RK-150WRK-120WRK-100WRK-80WRK-60W
Rated Power150W120W100W80W60W
LED Luminous Efficiency130lm/w or 150lm/w130lm/w or 150lm/w130lm/w or 150lm/w130lm/w or 150lm/w130lm/w or 150lm/w
Luminous Flux(130lm/w)19,500lm15,600lm13,000lm10,400lm7,800lm
Luminous Flux(150lm/w)22,500lm18,000lm15,000lm12,000lm9,000lm
Replacement450W-500w MH/HPS400W-450w MH/HPS350W-400w MH/HPS275W-300w MH/HPS225-250w HID/CFL
Input Voltage100-277Vac or 200-480Vac100-277Vac or 200-480Vac100-277Vac or 200-480Vac100-277Vac or 200-480Vac100-277Vac or 200-480Vac
Power Efficiency>88%>88%>88%>88%>88%
Lamp BaseE40/E39, E27/E26,Ex39E40/E39, E27/E26,Ex39E40/E39, E27/E26,Ex39E40/E39, E27/E26,Ex39E40/E39, E27/E26,Ex39
CRIRa>83Ra>83Ra>83Ra>83Ra>83
Dimensions280*170*62mm280*170*62mm280*170*62mm280*170*62mm280*170*62mm
LED Emitter Life50,000hours50,000hours50,000hours50,000hours50,000hours
Warranty5 years factory warranty5 years factory warranty5 years factory warranty5 years factory warranty5 years factory warranty
