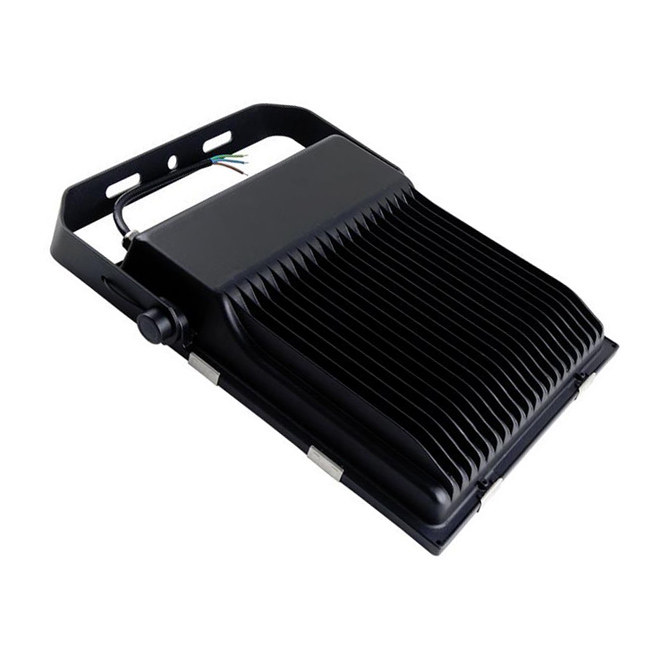

Home > Holiday Inn Flood Light
| Product Features |
• 130lm/w or 150lm/w
• Universal AC input 100-277Vac,100-347Vac,200-480Vac
• Protections: Short circuit / Over current/ Over temperature
• IP65 can be outdoor using.
• Easy installation, adjustable stand lets you point the light at different angles.
• Meanwell driver and Osram led chip.
• CCT: 2700K-6700K, Green color
| Mechanical Specification (mm) |
| Technical Specifications |
| Item No. | FDL-250W |
| Rated Power | 250W |
| Input Voltage | 100-277Vac,100-347Vac,200-480Vac |
| Input Current | 2.0A / 115VAC ; 1.0A / 230VAC ; 0.9A / 277VAC |
| Power Factor | PF>0.95 |
| Power Efficiency | >88% |
| Beam Angle |
30/60/90/120 degrees |
| Light Source/Count | Osram led |
| Lamp Base | Wires |
| LED Luminous Efficiency | 130lm/w or 150lm/w |
| Luminous Flux | 32,500lm or 37,500lm |
| Color Temperature Standard | 2700K-6700K, Green color |
| Color Rendering Index(CRI) | Ra＞83 |
| LED Emitter Life | 50,000hours |
| Replacement | 700-750w MH, HPS |
| Working Environment | Indoor/Outdoor Lighting |
| Operating Temperature | -40~50℃ |
| The Dimensions | 470*360*54mm |
| Applications |
Square,Bridge,outdoor lighting.
Conference / stadiums / Commercial Complexes
Places where need energy saving and high color rendering index lighting
| Installation |
| The relevant product parameters |
| Model NO. | FDL-10W | FDL-20W | FDL-30W | FDL-50W |
| Rated Power | 10W | 20W | 30W | 50W |
| LED | Osram led | Osram led | Osram led | Osram led |
| LED Luminous Efficiency | 130lm/w or 150lm/w | 130lm/w or 150lm/w | 130lm/w or 150lm/w | 130lm/w or 150lm/w |
| Luminous Flux | 1,500lm | 3,000lm | 4,500lm | 7,500lm |
| Replacement | 18-30w CFL/HID | 50-75w MH, HPS | 75-105w MH/HPS | 105-175w MH/HPS |
| Power Factor | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 |
| CRI | Ra＞83 | Ra＞83 | Ra＞83 | Ra＞83 |
| Dimensions | 166*116*32mm | 216.5*152*40mm | 226.5*167*54mm | 310.5*220*54mm |
| Model NO. | FDL-70W | FDL-100W | FDL-150W | FDL-200W |
| Rated Power | 70W | 100W | 150W | 200W |
| LED | Osram led | Osram led | Osram led | Osram led |
| LED Luminous Efficiency | 130lm/w or 150lm/w | 130lm/w or 150lm/w | 130lm/w or 150lm/w | 130lm/w or 150lm/w |
| Luminous Flux | 10,500lm | 15,000lm | 22,500lm | 30,000lm |
| Replacement | 175-250w MH, HPS | 250-300w MH, HPS | 300-400w MH, HPS | 500-750w MH, HPS |
| Power Factor | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 |
| CRI | Ra＞83 | Ra＞83 | Ra＞83 | Ra＞83 |
| Dimensions | 354*245*54mm | 402*295*54mm | 430*330*54mm | 470*360*54mm |
| Model NO. | FDL-250W | FDL-300W | FDL-400W | |
| Rated Power | 250W | 300W | 400W | |
| LED | Osram led | Osram led | Osram led | |
| LED Luminous Efficiency | 130lm/w or 150lm/w | 130lm/w or 150lm/w | 130lm/w or 150lm/w | |
| Luminous Flux | 37,500lm | 45,000lm | 60,000lm | |
| Replacement | 700-750w MH, HPS | 750-1000w MH, HPS | 100-1200w MH, HPS | |
| Power Factor | PF>0.95 | PF>0.95 | PF>0.95 | |
| CRI | Ra＞83 | Ra＞83 | Ra＞83 | |
| Dimensions | 470*360*54mm | 565*457*65mm | 585*559*70mm | |
