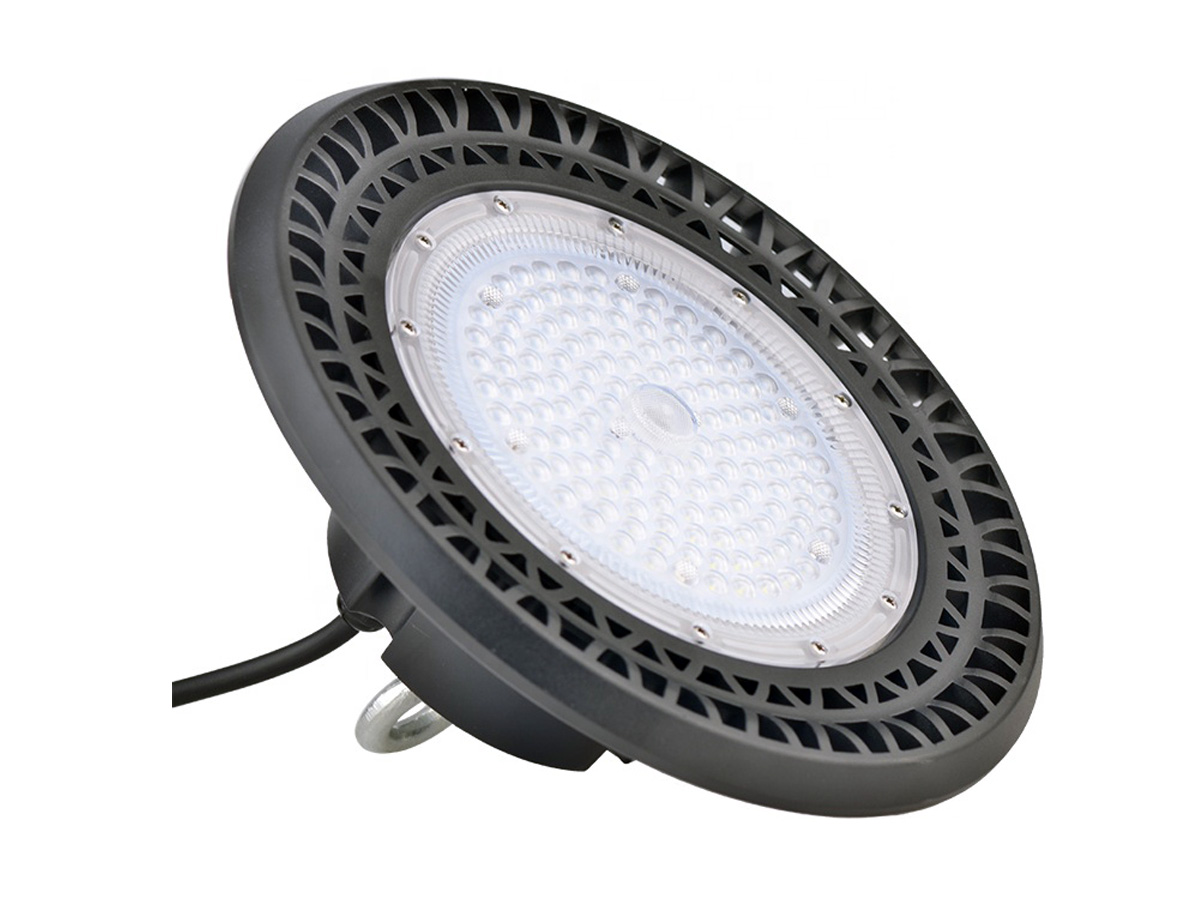

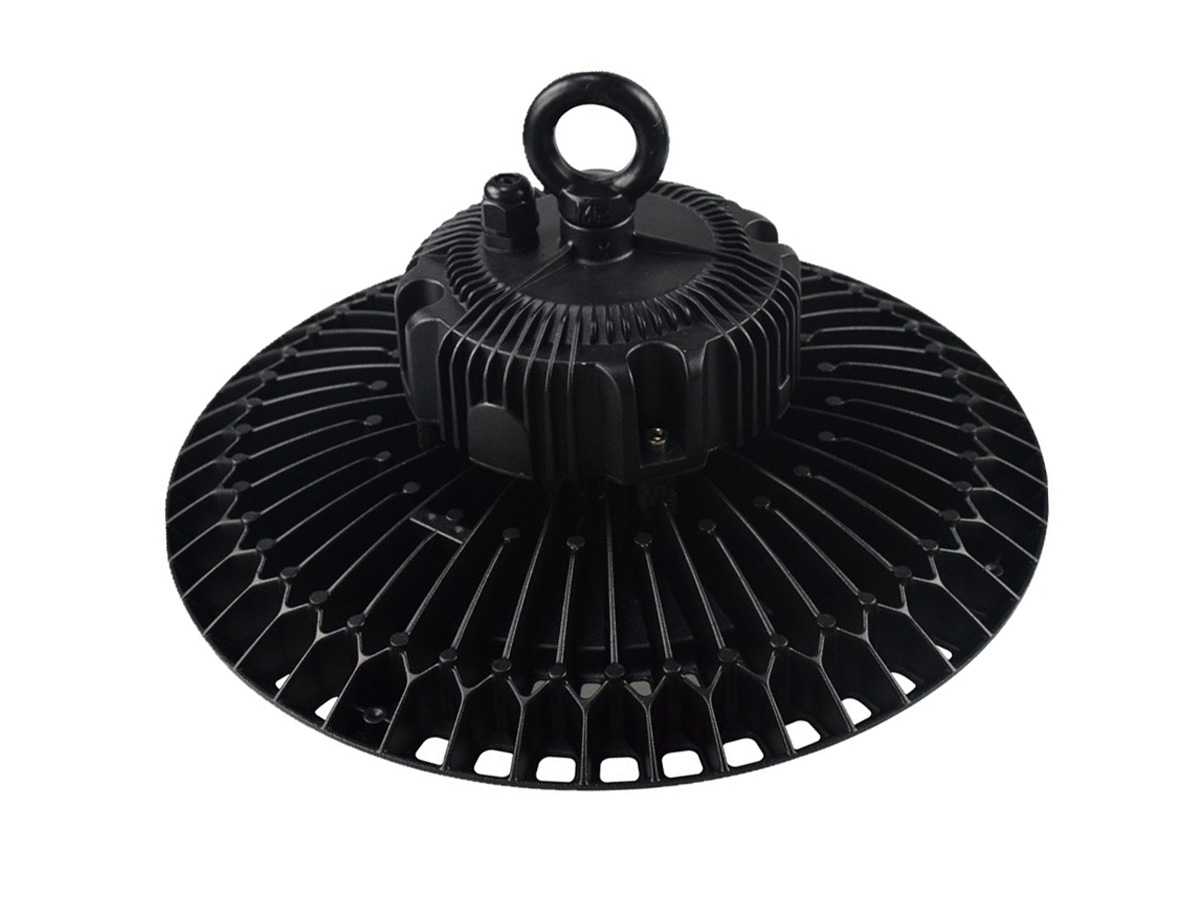

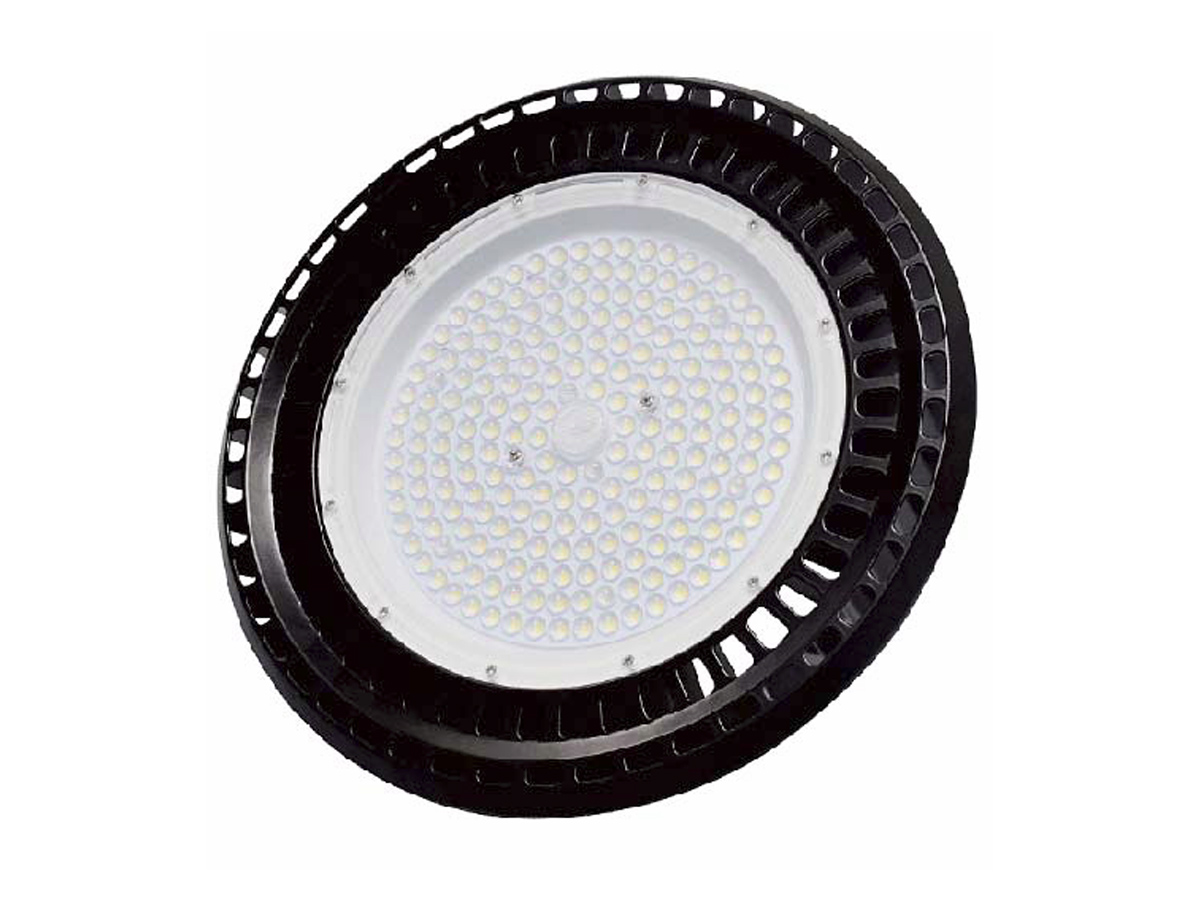

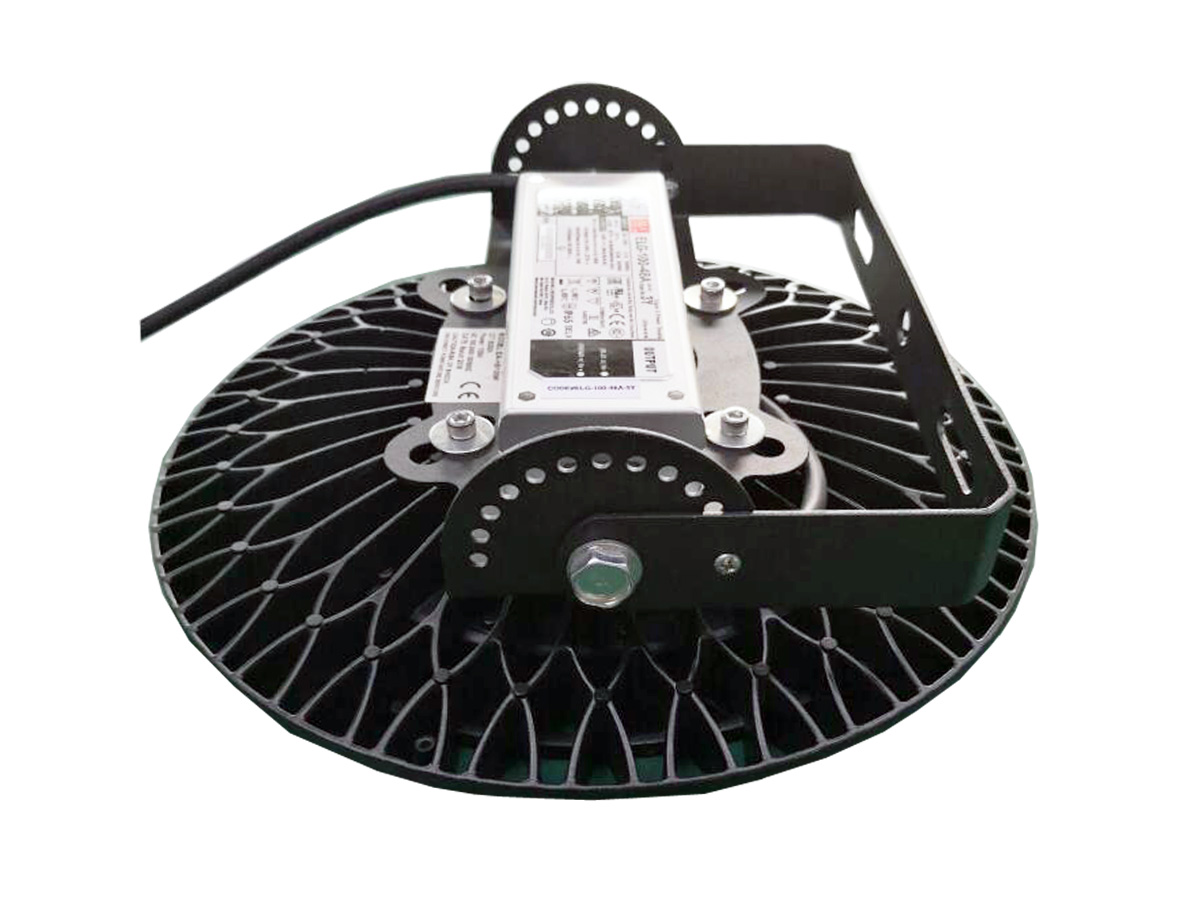

UFO 60W High Bay

  • Item No.: UFO-60W
  • Input Voltage: 100-277Vac ,100-347Vac , 200-480Vac
  • Beam Angle: 45 / 60 / 90 /120 degree
  • Dimension: Dia 235mm
  • Product description: 60w ufo lights led-Universal AC input 100-277Vac or 200-480Vac
  • INQUIRY

60w ufo lights led

Features


•130lm/w or 150lm/w

•Universal AC input 100-277Vac,100-347Vac,200-480Vac

•Protections: Short circuit / Over current / Over temperature.
•Meanwell driver and Osram led chip.
•45 / 60 / 90 /120 degree option.
•Clear or diffused cover.

60w ufo lights led feature

Specification data
Item No. UFO-60W
Rated Power 60W
Input Voltage 100-277Vac,100-347Vac,200-480Vac
Input Current 2.0A / 115VAC ; 1.0A / 230VAC ; 0.75A / 277VAC
Power Factor PF>0.95
Power Efficiency >93%
Beam Angle 45 / 60 / 90 /120 degree
Lamp Base Wires
LED Luminous Efficiency 130lm/w or 150lm/w
Luminous Flux 7,800lm or 9,000lm
Color Temperature Standard 2,700k
3,000 K
4,000 K
5,000K
5,700K
Color Rendering Index(CRI) Ra>83
LED Emitter Life 50,000hours
Replacement 175-250w MH, HPS
Diameter Dia 235mm
Working Environment Indoor lighting
Operating Temperature -40~50℃


Why us?

60w ufo lights led

Microwave sensore + dimming

led ufo lamp

Light Distribution curve

led ufo lamp

Applications


High/Low Bay Lighting/Sports Lighting/Factories Lighting
Other applications

led ufo lamp application

The relevant product parameters
Item No.WattsPower FactorLuminous Flux(130lm/w)ReplacementDiameterCRI
UFO-60W60WPF>0.95 9,000lm175-250w MH, HPSDia 235mm                Ra>83
UFO-100W100WPF>0.9515,000lm250-350w MH, HPSDia 280mm                Ra>83
UFO-120W120WPF>0.9518,000lm300-350w MH, HPSDia 340mm                Ra>83
UFO-150W150WPF>0.9522,500lm300-400W MH, HPSDia 340mm                Ra>83
UFO-160W160wPF>0.9524,000lm350-450w MH, HPSDia 340mm                Ra>83
UFO-200W200wPF>0.9530,000lm450-600w MH, HPSDia 400mm                Ra>83
UFO-240W240WPF>0.9536,000lm600-750w MH, HPSDia 400mm                Ra>83
