Home > LED Pyramid Corn Lamp

  • UL DLC 30W LED Pyramid Light
  • UL DLC 30W LED Pyramid Light
  • UL DLC 30W LED Pyramid Light
  • UL DLC 30W LED Pyramid Light
UL DLC 30W LED Pyramid LightUL DLC 30W LED Pyramid LightUL DLC 30W LED Pyramid LightUL DLC 30W LED Pyramid Light

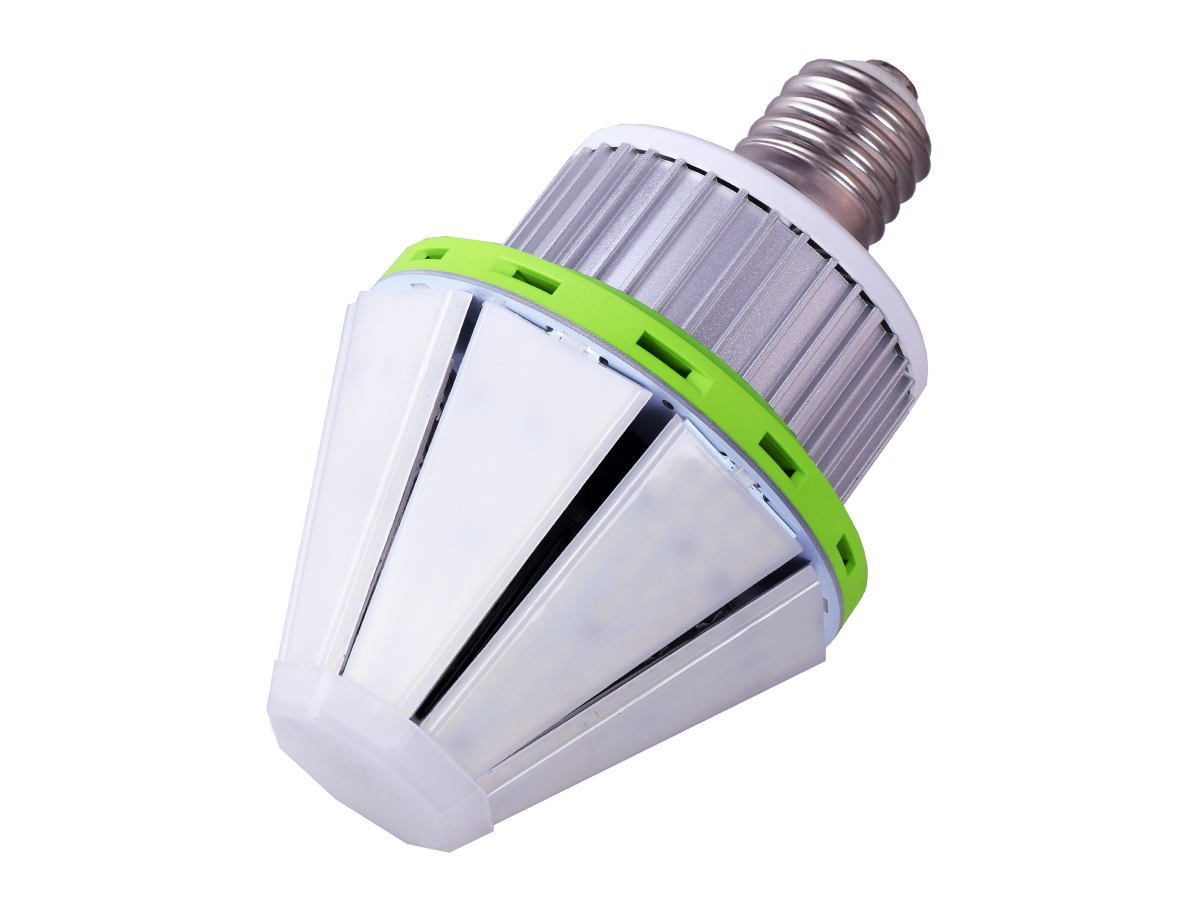

UL DLC 30W LED Pyramid Light

  • Item No.: HYD-30W8S
  • Input Voltage: 100-277Vac ,100-347Vac , 200-480Vac
  • Lamp Base: E40/E39, E27/E26, Ex39
  • Dimension: Φ128*190mm/Φ5.0*7.5inch
  • Product description: 30w led bulb can replace 75W-105W Metal Halide/HPS
  • INQUIRY

30w led bulb feature


Features


• 130lm/w, 150lm/w is available.

• Universal AC input 100-277Vac,100-347Vac,200-480Vac

• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Aluminum heat sink with fins.

• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.

30w led bulb feature

Dimensions


corn cob lamps dimension


Details



corn cob lamps details


Technical Specifications


Rated Power 30W
Universal AC input 100-277Vac,100-347Vac,200-480Vac
Input Current 0.64A / 115VAC ; 0.32A / 230VAC ; 0.3A / 277VAC
Power Factor PF>0.95
Power Efficiency >88%
Beam Angle 360°
Lamp Base E40/E39, E27/E26, Ex39
LED Luminous Efficiency 130lm/w, 150lm/w
Luminous Flux(125lm/w) 3,900lm
Luminous Flux(150lm/w) 4,500lm
Color Temperature Standard WarmWhite: 2,700~3,500 K
Natural White: 4,000~4,500 K
Cool White: 5,500~6,700K
Color Rendering Index(CRI) Ra>83
LED Emitter Life 50,000hours
Replacement 75W-105W Metal Halide/HPS
Working Environment Indoor/Outdoor Lighting
Operating Temperature -40~50℃
The Dimensions Φ128*190mm/Φ5.0*7.5inch
Warranty 5 years factory warranty
Packing 1pc/Box, 12pcs/Carton


Advantage

30w led bulb Advantage



Applications

applications:Warehouse, indoor lighting, street landscape.

Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting

30w led bulb Applications


Certificate


30w led bulb


The relevant product parameters

Model NO.

HYD-80W10S

HYD-60W8S

HYD-50W8S

HYD-40W8S

HYD-30W8S

HYD-25W8S

HYD-20W8S

Rated Power

80W

60W

50W

40W

30W

25W

20W

Luminous Flux

(130lm/w)

10,400lm7,800lm6,500lm5,200lm3,900lm3,250lm2,600lm

Luminous Flux

(150lm/w)

12,000lm9,000lm7,500lm6,000lm4,500lm3,750lm3,000lm
Replacement

275-300w MH,HPS

225-250w MH,HPS

175W-225W MH/HPS

125W-150W MH/HPS

75W-105W MH/HPS

40-60W HID,CFL

40-60W HID,CFL

Input Current

0.7A/115VAC
0.35A/230VAC
0.29A/277VAC

0.64A/115VAC
0.32A/230VAC
0.3A/277VAC

0.45A/115VAC
0.22A/230VAC
0.19A/277VAC

0.35A/115VAC
0.18A/230VAC
0.15A/277VAC

0.26A/115VAC
0.13A/230VAC
0.11A/277VAC

0.18A/115VAC
0.09A/230VAC
0.08A/277VAC

0.18A/115VAC
0.11A/230VAC
0.10A/277VAC

Dimensions

Dia 150 * 218mm / Dia 5.9 * 8.6inch

Φ128*190mm/Φ5.0*7.5inch

Φ106*167mm/Φ4.2*6.6inch

Power Factor

PF>0.95

Power Efficiency

>93%

>88%

Universal AC input

100-277Vac,100-347Vac,200-480Vac

Beam Angle

360°

Lamp Base

E40/E39, E27/E26, Ex39

LED Luminous Efficiency

130lm/w, 150lm/w

Color Temperature Standard

WarmWhite: 2,700 3,500 K

Natural White: 4,000 4,500 K

Cool White: 5,500 6,700K

CRI

Ra>83

LED Emitter Life

50,000hours

Working Environment

Indoor/Outdoor Lighting

Operating Temperature

-40~50℃

Warranty

5 years factory warranty

Packing

1pc/Box, 12pcs/Carton
